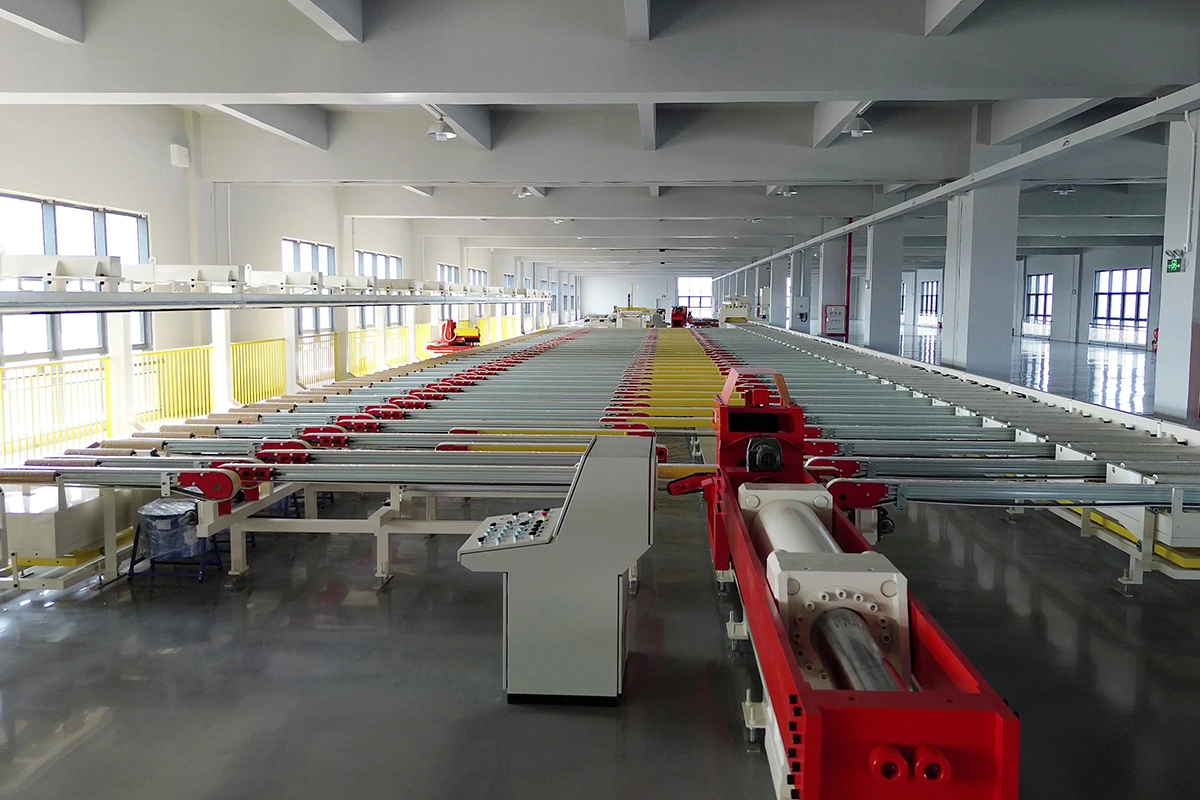

Stretcher for Aluminum Profile Straightening
The Automatic Stretcher from YJING Extrusion Machinery is a high-performance auxiliary equipment essential in aluminum profile extrusion lines. Designed for precision, durability, and flexibility, this stretcher is engineered to efficiently straighten and shape aluminum profiles after extrusion and cooling. With fully automated and semi-automated operation modes, it offers users a choice between unmanned and single-operator workflows, ensuring optimal productivity and adaptability.
Main Components of the Stretcher
The automatic stretcher consists of the following five key components:
* Roadway Rail
* Main Cylinder
* Front Jaws and Rear Jaws
* Straightening Machine Conveyor
These components work in synchronization to deliver stable and efficient stretching and straightening operations suited for a variety of aluminum profile specifications.
High-Power Pulling & Adjustable Jaw Opening
The stretcher's maximum pulling force and the jaw opening size can be customized to meet the requirements of different aluminum profile dimensions and tensile strengths. This adaptability ensures compatibility with a wide range of profile types, from architectural frames to industrial extrusions.
Key Features and Technical Advantages
Heavy-Duty Roadway Rail Construction
The roadway rail is constructed using welded A3 steel plates and square tubes, ensuring structural strength and long service life even under heavy-duty operations. The rail is fixed into the factory foundation via pre-installed anchor points, ensuring precise alignment and vibration resistance.
Smart Rear Jaw with Precision Movement
The rear jaws are mounted on a rack-and-pinion system, allowing motor-driven adjustment along the roadway rail according to the length of the aluminum profiles. Once the required position is detected by sensors, a cylinder actuator drives the dragging plate's engagement mechanism to securely lock onto the guide rail's rack and pinion.
This ensures accurate profile positioning, preventing distortion or misalignment during the stretching process.
Real-Time Visual Monitoring System
The rear jaw is equipped with a high-definition wireless camera, providing real-time video transmission to the main operation desk monitor. This allows operators to monitor the stretching process clearly and intervene promptly when necessary, enhancing operational safety and accuracy.
Dual Operation Modes for Flexibility
* Automatic Straightening Mode (Unmanned): Ideal for continuous high-volume production lines, this mode offers fully automated operations with minimal human intervention.
* One-Man Straightening Mode: Designed for flexible, small-batch runs or when operator oversight is necessary. This mode provides full control for manual adjustments and monitoring.
Why Choose YJING Extrusion's Stretcher?
With over 20 years of expertise in the aluminum extrusion industry, YJING Extrusion Machinery combines intelligent automation with robust mechanical design to deliver high-quality, reliable stretchers. Our products are trusted by extrusion plants worldwide for their:
* Stable performance
* High tensile capability
* User-friendly operation
* Reliable automation systems
* Durability and long-term operational efficiency
Each stretcher unit is manufactured under strict quality control standards and can be customized to integrate seamlessly with the customer's existing extrusion production line.
Applications
The automatic stretcher is suitable for use in:
* Aluminum window and door profile production
* Heat sink and industrial profile manufacturing
* Construction and automotive profile extrusion lines
Customization & Technical Support
YJING offers full OEM/ODM services, technical support, and installation guidance to meet the diverse needs of global clients. Whether you require a standalone stretcher or a complete aluminum extrusion solution, YJING is your dependable partner in extrusion technology.
Come and contact us to shop! ! !
